Atlona® 2 Channel Black Power Amplifier

Model #: AT-HDR-CAT-8

$3,280.00

At a Glance

Send a single 4K HDR source to eight displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

WarningProposition 65 Warning for California Residents
Atlona® 2 Channel Black Power Amplifier

General Specs

Depth (in.)10
Height (in.)1.73
Width (in.)17.24
Frequency Response20 Hz to 20 kHz, ± 0.5 dB
Outdoor ApprovedNo
Color Finish NameBlack
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
Product Weight (lbs.)7.26
Voltage100/240
Amplifier Channels2
Streaming CapableNo

Atlona® 2 Channel Black Power Amplifier

Model #: AT-HDR-CAT-8
1410353
Model #: AT-HDR-CAT-8
Atlona
$3,280.00

Price Starting At

$3,280.00

At a Glance

Send a single 4K HDR source to eight displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

Get to know this product.

4K HDR Support

Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

Unique Features

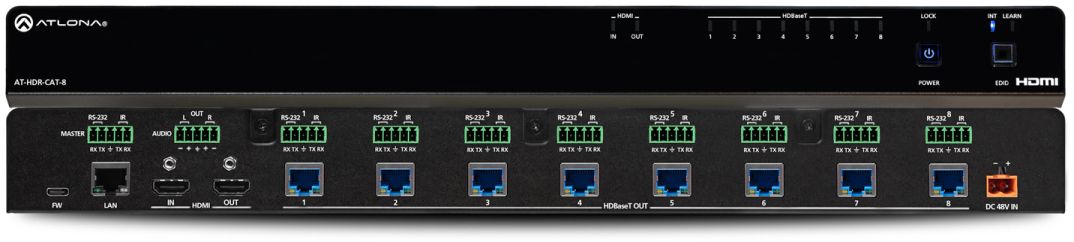

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

4K HDR Support

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.

Long Distance Extension

HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).

CEC Display Control

Send display on/off commands to the pass-through and receiver HDMI outputs using the power button, IP, or RS-232.

Audio De-embedding

De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system

Introducing the AT-HDR-CAT-8

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m).

Setting up the AT-HDR-CAT series

Learn how to set up and configure the AT-HDR-CAT series of 4K HDR HDMI to HDBaseT distribution amplifiers using the built-in web server.

Long distance distribution for eight displays

The HDR-CAT-8 accepts an HDMI source and routes it to eight HDBaseT outputs which carry 4K HDR content to AT-HDR-EX-70C-RX receivers at distances of up to 130 feet (40 meters). The receiver then provides an HDMI output to its connected display. HDMI pass-through allows the signal to be sent to a local display.

Quick Features

One HDMI® input and eight HDBaseT™ outputs

Extend 4K/60 4:4:4 up to 130’ (40 m)

Supports HDR10, HLG, and Dolby® Vision™

Pass-through HDMI output

CEC display control on each output

Audio de-embedding with volume control

Also available with 2 outputs, 4 outputs, or 4 extended distance outputs

Specifications

General Specs

Depth (in.)10
Height (in.)1.73
Width (in.)17.24
Frequency Response20 Hz to 20 kHz, ± 0.5 dB
Outdoor ApprovedNo
Color Finish NameBlack
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
Product Weight (lbs.)7.26
Voltage100/240
Amplifier Channels2
Streaming CapableNo
