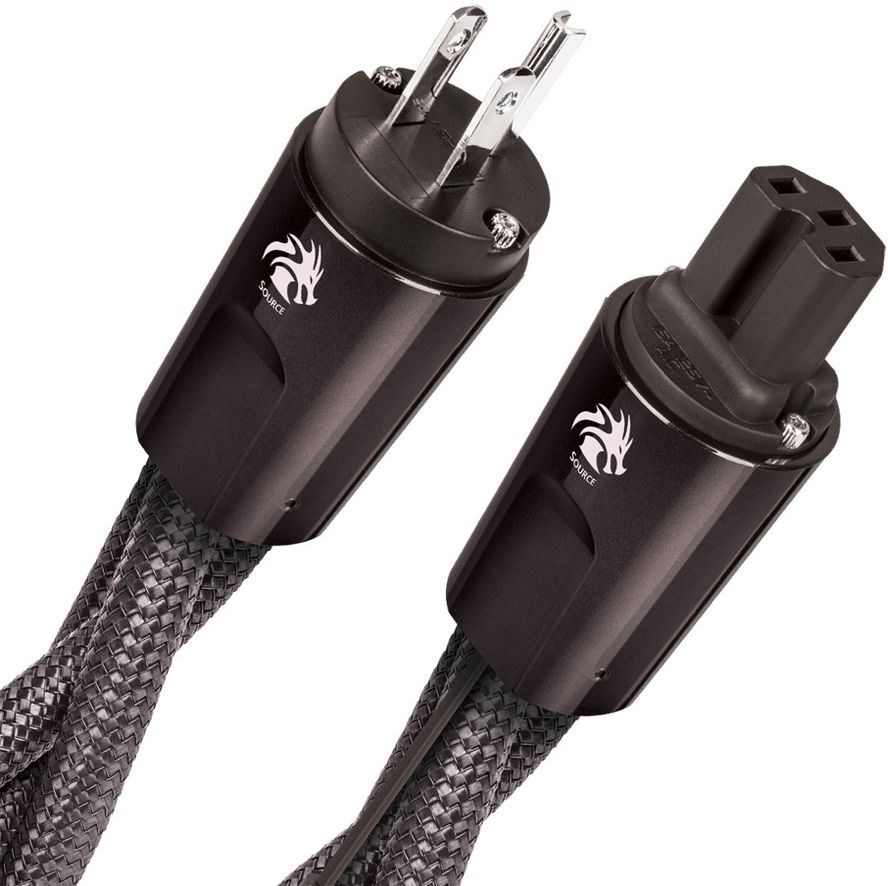

Low-Z / Noise-Dissipation 3-Pole AC Power Cable. Solid conductors prevent electrical strand-to-strand interaction, major sources of distortion.
|Cord Length (Ft)||9.84|
Solid Perfect-Surface Silver (PSS) and Perfect-Surface Copper + (PSC+) Conductors
Optimized For Source Components
Ground Noise-Dissipation Technology (US Patent # 9,373,439)
ZERO (No) Characteristic Impedance (50Hz – 1MHz)
Dielectric-Bias System with Radio Frequency Noise Trap
Directionally Controlled Conductors
Alternating Current (AC), is a far-from-perfect power source. AC power technology is well over a century old and was never designed to meet the exacting standards of today’s high resolution audio-video components. AC noise is present at the utility source, and is then exacerbated by radio frequency noise that is induced (picked up by the AC power cord) and coupled to the component power supplies and to circuit ground. This creates distortion and low-level signal losses via the “masking effect.” Further, power amplifiers can require immense reserves of transient current for their power supplies to react to and then stabilize during dynamic audio passages. Most AC power cords and power conditioner-regenerators, though helpful to a point, are simply not up to the task.
AudioQuest Dragon/Source AC power cable is not appropriate for use with AC power conditioners, power regenerators, AC isolation transformers, AC battery back-up devices, as well as any power amplifier, powered sub-woofer, powered loudspeaker, powered receiver, or integrated amplifier (whether tube, solid state or digital switching). These products will require greater RMS and transient current capacity. In extreme instances, they could suffer diminished performance and/or present an electrical danger by exceeding the AudioQuest Dragon/Source AC power cable’s maximum current capacity. For those applications, we highly recommend selecting the AudioQuest’s [b]Dragon/High-Current AC power cable.
AC Ground wires provide protection from current-wiring faults, but they also act as antennas. Thus, they are subject to induced radio-frequency (RF) noise. This RF noise bypasses component power supplies and is typically coupled directly into a system’s most sensitive audio/video circuits. AudioQuest’s patented Ground-Noise Dissipation greatly reduces this distortion, yielding unprecedented levels of noise dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit topology utilizes a common-mode phase-cancelling array, in concert with proprietary dielectric materials which provide additional differential linear filtering. (US Patent # 9,373,439)
Solid conductors prevent electrical strand-to-strand interaction, major sources of distortion. Surface quality is critical because a conductor can be considered as a rail-guide for both the fields within a conductor, and for the magnetic fields that extend outside the conductor. The astonishingly smooth and pure Perfect-Surface Copper+ eliminates harshness and greatly increases clarity compared to OFHC, OCC, 8N and other premium coppers. Extremely high-purity Perfect-Surface Silver further minimizes distortion caused by grain boundaries, which exist within any metal conductor.
All drawn metal strands or conductors have a non-symmetrical, and therefore directional, grain structure. AudioQuest controls the resulting RF impedance variation so that noise is drained away from where it will cause distortion. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. When applicable, arrows are clearly marked on the connectors to ensure superior sound quality. For most models of AQ cable, the arrows not only indicate the direction that optimizes metal-directionality as part of Noise-Dissipation, but also indicates non-symmetrical attachment of shield and GND in order to optimize full-system performance.
All insulation between two or more conductors is also a dielectric whose properties will affect the integrity of the signal. When the dielectric is unbiased, dielectric-involvement (absorption and non-linear release of energy) causes different amounts of time delay (phase shift) for different frequencies and energy levels, which is a real problem for very time-sensitive multi-octave audio. The inclusion of an RF Trap (developed for AudioQuest’s Niagara Series of power products), ensures that radio frequency noise will not be induced into the signal conductors from the DBS field elements. (DBS, US Pat #s 7,126,055 & 7,872,195 B1)
|Cord Length (Ft)||9.84|
