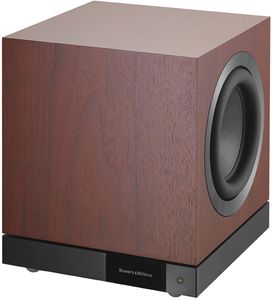

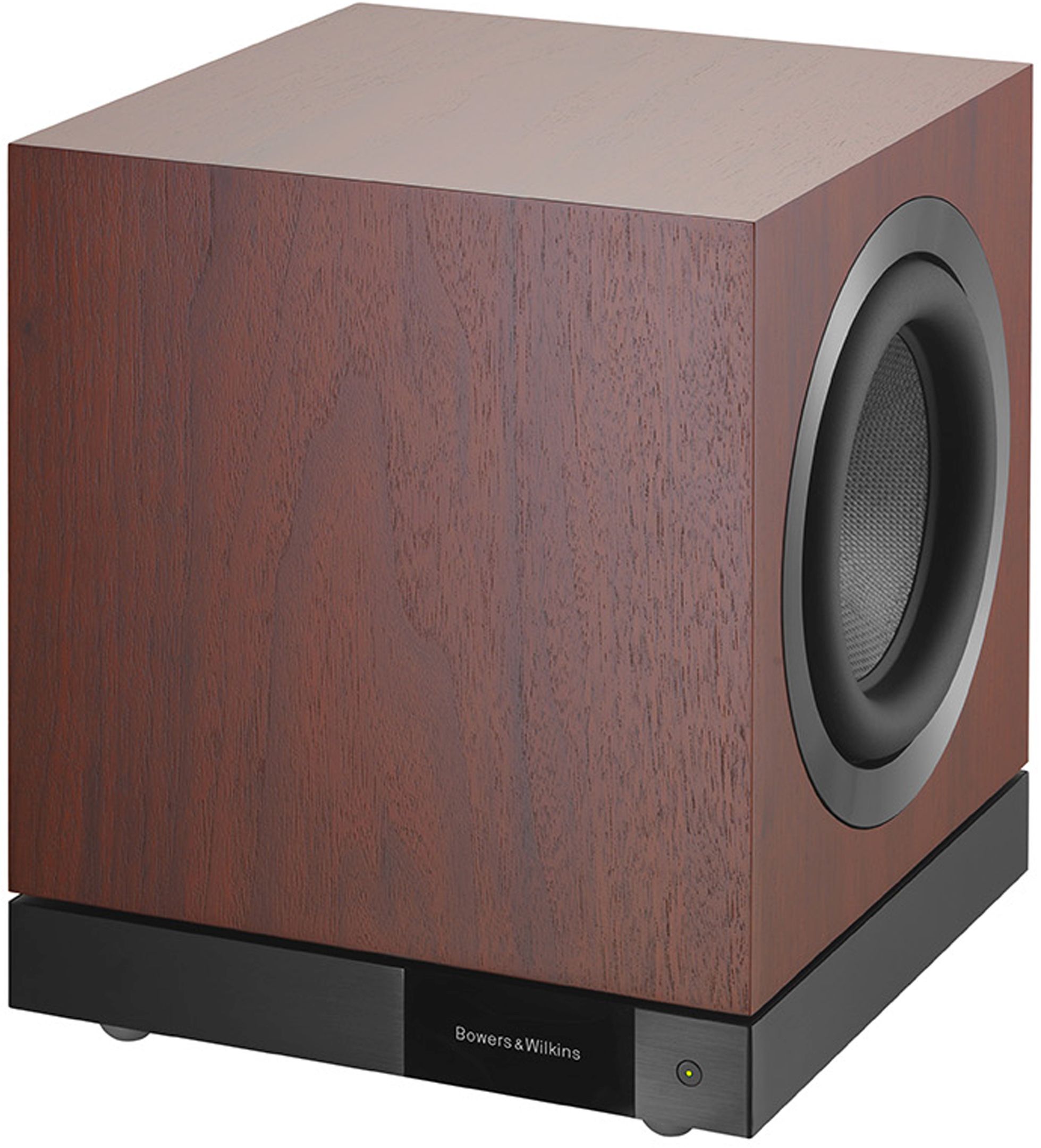

The DB3D delivers astonishing performance from a compact subwoofer. Its dual balanced 8-inch Aerofoil drivers are effortlessly powered by a 1000 Watt Class D amplifier to deliver punchy, deep bass.
When you demand faultless bass but floor space is at a premium, there’s the DB3D. This high-performance subwoofer is capable of deliver space defying bottom end from a highly compact, incredibly rigid cabinet.
The DB3D uses Aerofoil cones identical to those found in the 802 D3. These two 8-inch cones are light and ultra-stiff, and can resist bending and flexing far longer than conventional cones, delivering controlled bass with outstanding precision.
The DB3D subwoofer uses two bass cones arranged in an opposed, balanced configuration that greatly reduces cabinet vibration and ensures a cleaner, more precise sound. The result: fantastic, coloration-free bass.
Thanks to an all-new digital pre-amplifier, the DB3D subwoofer’s awesome power is always delivered at optimum levels. Bespoke features such as Dynamic EQ and Room EQ ensure precision performance in every circumstance – such as home cinema, custom installation or two-channel Hi-Fi.
App-based set-up means the DB3D is simple to configure and use. The App includes positioning guides and can be used to set up and control both output and audio preset modes. A room EQ system allows you to optimize the subwoofer’s performance for your room automatically. No separate microphone kit is required and the App is available for the iOS and the Android.
The DB3D is the obvious partner for a system built using the award-winning 800 series Diamond. It has been engineered and uses the same Aerofoil bass drivers. However, this incredibly capable subwoofer also works exceptionally well with the CM Series system, and provides a fantastic option for owners of this high-performance range.
|Description||DB Series subwoofer|
|Drive Units||2 x 200mm (8in) Aerofoil™ cone drive units in a balanced configuration|
|Frequency Range (-6dB)||8.5Hz - 500Hz|
|Frequency Response -3dB (centered on level at 100Hz)||10Hz - 350 Hz|
|Max Power Output||1000W|
|Inputs||2 x XLR, 2 x RCA, 2 x 3.5mm 12V trigger, RS-232 - 9-pin D connector|
|Dimensions||Height: 360mm (14.1in), Width: 320mm (12.6in), Depth: 300mm (11.8in)|
|Product Weight (lbs.)||55.1|
|Woofer Size||8" x 2|
|Speaker Type||Powered Subwoofers|
|Maximum Power Handling (Watts)||1000|
|Color Finish Name||Rosenut|
|Speaker Size||8 x 2|
|RMS Power Handling (Watts)||1000|
