Chief® Black Freestyle Flat Panel Rotation Adapter
Chief® Black Freestyle Flat Panel Rotation Adapter 0
Chief® Black Freestyle Flat Panel Rotation Adapter 1

Chief® Black Freestyle Flat Panel Rotation Adapter

Model #: FRA
944965
Chief
At a Glance
The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts. Provides 90 degrees of rotation for 360 degrees of range.
Call for Best Price

Get to know this product.

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts.

Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.

  • Positive lockouts at 15 degree increments
  • Provides 90 degrees of rotation for 360 degrees of range
  • Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
  • Micro-adjustment (with ConnexSys)
  • Weight capacity when used with ConnexSys: 125 lbs (56.7 kg)
  • Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
  • Use with Fusion wall, ceiling and freestanding mounts

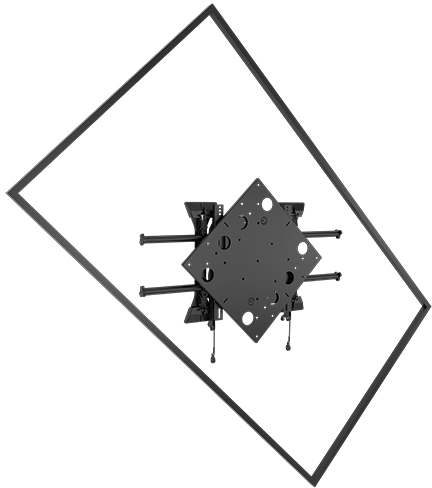

Note: FRA shown in picture with Fusion mount.

Useful Documents
Technical Drawing
Installation Instructions
Specifications

General

ColorBlack
Minimum Depth0.84" (21 mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200; 200 x 300; 200 x 400; 300 x 300; 400 x 400; (600 x 400 if using FHB5036 or FHB5037 bracket accessory)
Overall Dimensions (H x W x D)17.25 x 17.25 x 0.84" (438 x 438 x 21 mm)
Rotation90 degrees
Solution TypeUniversal
Typical Screen SizesGreater than 40” using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
Weight CapacityWith MTMS1U, STMS1U 55 lbs (24.95 kg): With ConnexSys 125 lbs (56.7 kg)
OrientationLandscape, Portrait
NotesPositive lockouts at 15 degree increments

Misc. Specs

ColorBlack
Depth (in.)0.84
Width (in.)17.25
Height (in.)17.25
Mounting LocationWall
Color Finish NameBlack
Width (cm)43.8
Height (cm)43.8
Depth (cm)2.1
WarningProposition 65 Warning for California Residents
