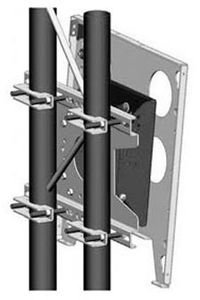

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.Read More
Clamps for different size poles and truss work are required and must be ordered separately (see TPK kits and chart)
3 Flat Panel Mount Options TPS: Truss/Pole Fixed Mount ; TPM: Pole Tilt-Adjustable Mount ; and TPP: Truss Pitch-Adjustable Mount.
3 Pitch Adjustment Options on TPM and TPP
Install on vertical or horizontal truss
Attach displays in portrait or landscape orientation
TPS/TPP span most truss systems up to 14" (OD)
Truss/Pole clamps fit a wide variety of truss and pole dimensions. (see chart)
Finishing Cover accessories enhance aesthetics and cover hardware for added security
Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Integrated security allows display to be locked to mount by adding a padlock
Compatible with TPK clamp accessories. See Accessory list below.
TPPU universal version available which includes universal PSBUB interface. TPP2000B is available but must order TPP2000B and PSBXXXX custom or universal interface separately.
General Specs | |
| Color | Black |
| Width (in.) | 5.25 |
| Height (in.) | 20 |
| Length (in.) | 39.5 |
| Outdoor Approved | No |
| Color Finish Name | Black |
| Smart Compatible | No |
| Touchscreen | No |
Other Specifications | |
| Minimum Depth | 4.13" (104.9mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 862 x 517mm |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal, Custom |
| Typical Screen Sizes | 42 - 71" |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Landscape, Portrait |
