The CMS491CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Power Consumption | <0.5 watt |
---|---|
Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR) | 600V L-N, N-G; 800V L-G |
Maximum Continuous Operating Voltage (MCOV) | 240V |
Nominal Discharge Current (In) | 3kA |
Short Circuit Current Rating (SCCR) | 5kA |
Ambient Temperature Max | 40 degrees C |
Color | White |
---|---|
Overall Dimensions (H x W x D) | 8" x 12.97" x 23.67" (203 x 329 x 601 mm) |
Certifications | UL Listed |
Shipping Weight | 31.9 lbs (14.47 kg) |
Weight Capacity | 100 lbs (45.4 kg) |
Max Equip Size H x W x D | 7.61" x 19.25" x 12" (193 x 489 x 305 mm) |
Notes | Output: 15A, 1875 W continuous |
Color | White |
---|---|
Depth (in.) | 23.6 |
Width (in.) | 23.6 |
Height (in.) | 1.1 |
Weight Kilogram | 10.14 |
Color Finish Name | White |
Width (cm) | 60 |
Height (cm) | 2.9 |
Depth (cm) | 60 |
Price Starting At
The CMS491CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
Drop carriage door improves accessibility and serviceability providing full access to equipment
Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
Inside the box or facing the room
Up to 2 single gang or 1 dual gang outlet
4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
Built in ventilation
AV tray supports a variety of AV components
Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
Overall weight capacity 100 lbs (45 kg)
50 lbs (22 kg) for projector ceiling plate
25 lbs (11 kg) per shelf location
Ships with speed connect installation hardware
Lightweight construction, one man installation
UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
TAA Compliant
Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection

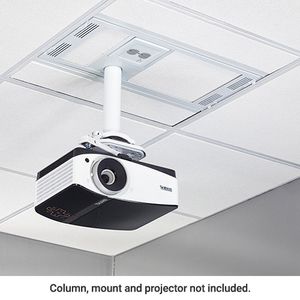

*Column and projector mount not included, must be purchased separately.
Color | White |
Depth (in.) | 23.6 |
Width (in.) | 23.6 |
Height (in.) | 1.1 |
Weight Kilogram | 10.14 |
Color Finish Name | White |
Width (cm) | 60 |
Height (cm) | 2.9 |
Depth (cm) | 60 |
Color | White |
Overall Dimensions (H x W x D) | 8" x 12.97" x 23.67" (203 x 329 x 601 mm) |
Certifications | UL Listed |
Shipping Weight | 31.9 lbs (14.47 kg) |
Weight Capacity | 100 lbs (45.4 kg) |
Max Equip Size H x W x D | 7.61" x 19.25" x 12" (193 x 489 x 305 mm) |
Notes | Output: 15A, 1875 W continuous |
Power Consumption | <0.5 watt |
Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR) | 600V L-N, N-G; 800V L-G |
Maximum Continuous Operating Voltage (MCOV) | 240V |
Nominal Discharge Current (In) | 3kA |
Short Circuit Current Rating (SCCR) | 5kA |
Ambient Temperature Max | 40 degrees C |
