Chief® White 1' x 2' Above Suspended Ceiling Storage Box

Model #: CMS491P2

$548.80

At a Glance

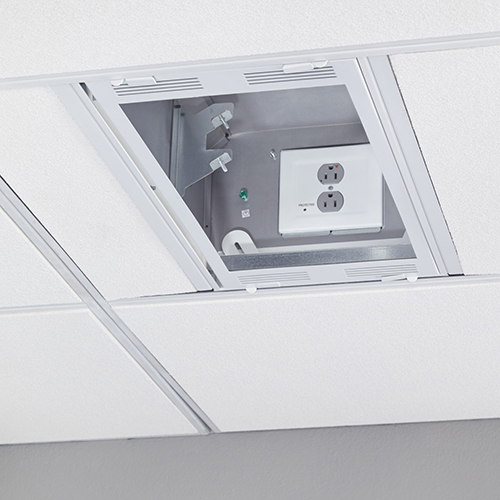

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection.

WarningProposition 65 Warning for California Residents
Chief® White 1' x 2' Above Suspended Ceiling Storage Box

Power Requirements

Power Consumption <0.5 watt
Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR)600V L-N, N-G; 800V L-G
Maximum Continuous Operating Voltage (MCOV)240V
Nominal Discharge Current (In)3kA
Short Circuit Current Rating (SCCR)5kA
Ambient Temperature Max40 degrees C

General

ColorWhite
Overall Dimensions (H x W x D)8" x 12.97" x 23.67" (203 x 329 x 601 mm)
CertificationsUL Listed
Shipping Weight30 lbs (13.61 kg)
Adjustments100 lbs ( 45.4 kg)
Max Equip Size H x W x D7.61" x 19.25" x 12" (193 x 489 x 305 mm)
NotesOutput: 15A, 1875 W continuous

General Specs

ColorWhite
Depth (in.)23.6
Width (in.)23.6
Height (in.)1.1
Weight Kilogram10.14
Color Finish NameWhite
Width (cm)60
Height (cm.)2.9
Depth (cm.)60

Chief® White 1' x 2' Above Suspended Ceiling Storage Box

Model #: CMS491P2
939086
Model #: CMS491P2
Chief
$548.80

Price Starting At

$548.80

At a Glance

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection.

Get to know this product.

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Drop carriage door improves accessibility and serviceability providing full access to equipment

Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time

Inside the box or facing the room

Up to 2 single gang or 1 dual gang outlet

4 nested knockouts for 1-1/4", 1", & ½" diameter conduit

Built in ventilation

AV tray supports a variety of AV components

Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1

Overall weight capacity 100 lbs (45 kg)

50 lbs (22 kg) for projector ceiling plate

25 lbs (11 kg) per shelf location

Ships with speed connect installation hardware

Lightweight construction, one man installation

UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC

TAA Compliant

Surge and Filter Module

Non-volatile spike protection with LED power indicator

Non-sacrificial multi-stage technology

Non-current limiting design passes full power on a regular circuit; redundant protection circuits

Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime

Line filter reduces common and differential mode noise by up to 40 dB

Rated for 125V~, 60Hz, 15 A

1875 watt maximum

Ferrite toroid based EMI Filter

Withstand rating of 240 VAC continuous without damage or loss of protection

*Column and projector mount not included, must be purchased separately.

Specifications

General Specs

ColorWhite
Depth (in.)23.6
Width (in.)23.6
Height (in.)1.1
Weight Kilogram10.14
Color Finish NameWhite
Width (cm)60
Height (cm.)2.9
Depth (cm.)60

General

ColorWhite
Overall Dimensions (H x W x D)8" x 12.97" x 23.67" (203 x 329 x 601 mm)
CertificationsUL Listed
Shipping Weight30 lbs (13.61 kg)
Adjustments100 lbs ( 45.4 kg)
Max Equip Size H x W x D7.61" x 19.25" x 12" (193 x 489 x 305 mm)
NotesOutput: 15A, 1875 W continuous

Power Requirements

Power Consumption <0.5 watt
Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR)600V L-N, N-G; 800V L-G
Maximum Continuous Operating Voltage (MCOV)240V
Nominal Discharge Current (In)3kA
Short Circuit Current Rating (SCCR)5kA
Ambient Temperature Max40 degrees C
