Chief® White 2' x 2' Above Suspended Ceiling Storage Box

Model #: CMS492

$552.00

At a Glance

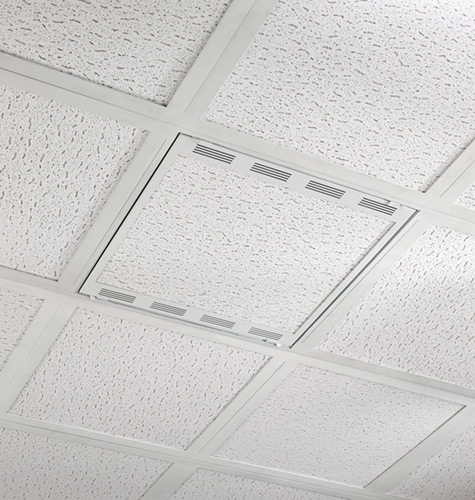

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms. Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time.

WarningProposition 65 Warning for California Residents
Chief® White 2' x 2' Above Suspended Ceiling Storage Box

General

ColorWhite
Overall Dimensions (H x W x D)8" x 24.97" x 23.67" (203 x 634 x 601 mm)
CertificationsUL Listed, TAA Compliant
Weight Capacity100 lbs ( 45.4kg)
Max Equip Size H x W x D7.61" x 19.25" x 20" (193 x 489 x 508 mm)
Shipping Weight41 lbs (18.6 kg)

General Specs

ColorWhite
Depth (in.)23.67
Width (in.)24.97
Height (in.)8
Weight Kilogram18.6
Color Finish NameWhite
Width (cm)63.4
Height (cm.)20.3
Depth (cm.)60.1

Chief® White 2' x 2' Above Suspended Ceiling Storage Box

Model #: CMS492
939303
Model #: CMS492
Chief
$552.00

Price Starting At

$552.00

At a Glance

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms. Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time.

Get to know this product.

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

Inside the box or facing the room

Up to 2 single gang or 1 dual gang outlet

4 nested knockouts for 1-1/4", 1", & ½" diameter conduit

Built in ventilation

AV tray supports a variety of AV components

Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2

1 RU rack rail brackets sold separately, see CMS1RU

Overall weight capacity 100 lbs (45 kg)

50 lbs (22 kg) for projector ceiling plate

25 lbs (11 kg) per shelf location

Ships with speed connect installation hardware

Lightweight construction, one man installation

UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC.

TAA Compliant

Specifications

General Specs

ColorWhite
Depth (in.)23.67
Width (in.)24.97
Height (in.)8
Weight Kilogram18.6
Color Finish NameWhite
Width (cm)63.4
Height (cm.)20.3
Depth (cm.)60.1

General

ColorWhite
Overall Dimensions (H x W x D)8" x 24.97" x 23.67" (203 x 634 x 601 mm)
CertificationsUL Listed, TAA Compliant
Weight Capacity100 lbs ( 45.4kg)
Max Equip Size H x W x D7.61" x 19.25" x 20" (193 x 489 x 508 mm)
Shipping Weight41 lbs (18.6 kg)
