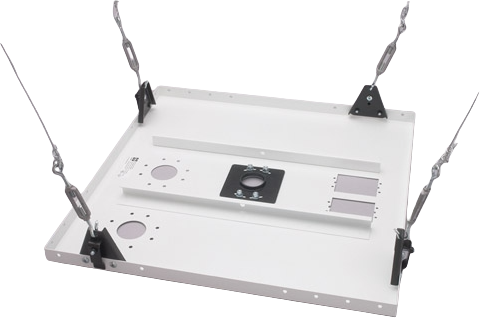

An easy-to-install 2' x 2' plate (secured by safety wire) that is designed to sit unseen above the suspended ceiling. Offers great flexibility for mounting with nine mounting hole positions and threaded ends for accepting 1.5" NPT extension column.

Chief® White Suspended Ceiling Kit

An easy-to-install 2' x 2' plate (secured by safety wire) that is designed to sit unseen above the suspended ceiling.

Offers great flexibility for mounting with nine mounting hole positions and threaded ends for accepting 1.5" NPT extension column

Comes with 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, two outlet knockouts, four turnbuckles, wood eye bolts, concrete anchors and chrome finishing ring

Weight Capacity: center hole - 250 lbs (113.4 kg), side and corner holes - 125 lbs (56.7 kg)

General Specs
Color	White
Depth (in.)	23.8
Width (in.)	23.8
Height (in.)	1.1
Weight Kilogram	9.07
Color Finish Name	White
Width (cm)	60.3
Height (cm.)	2.9
Depth (cm.)	60.3
General
Color	White
Overall Dimensions (H x W x D)	1.1" x 23.8" x 23.8" (29 x 603 x 603 mm)
Shipping Weight	20 lbs (9.07 kg)
Weight Capacity	250 lbs (113.4 kg), 125 lbs (56.7 kg)
Certifications	UL Listed
