The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free

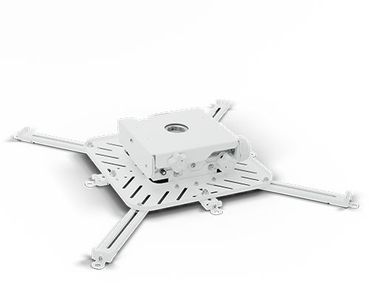

Chief® White XL Universal Tool-Free Projector Mount

The new VCT is 30% slimmer than the VCM mount

The new VCT is 25% lighter than the VCM mount

Available in black and white finish options

The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment

Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket

PrecisionSet™ technology to lock in pitch adjustments

Tool-free MicroZone™ Roll & Yaw Adjustments

Lockout nuts enable additional image lock security

Universal plate is sized to accommodate most patterns within footprint

Short attachment legs reduce clutter for smaller projector installation patterns

Long attachment legs extend reach for larger projector installation patterns

General Specs
Height (in.)	19.09
Weight Capacity (lbs.)	150
Mount Type	Fixed
Color	White
Width (in.)	7.09
Outdoor Approved	No
Low Profile	Yes
Smart Compatible	No
Wifi Capable	No
Tilt	No
Mounting Location	Ceiling
Color Finish Name	White
Other Specifications
Adjustments	Micro Roll +/- 5°, Micro Pitch +/- 20°, Micro Yaw +/- 10°, Macro Yaw 360°
Certifications	TÜV Certified, UL Listed
Solution Type	Universal
