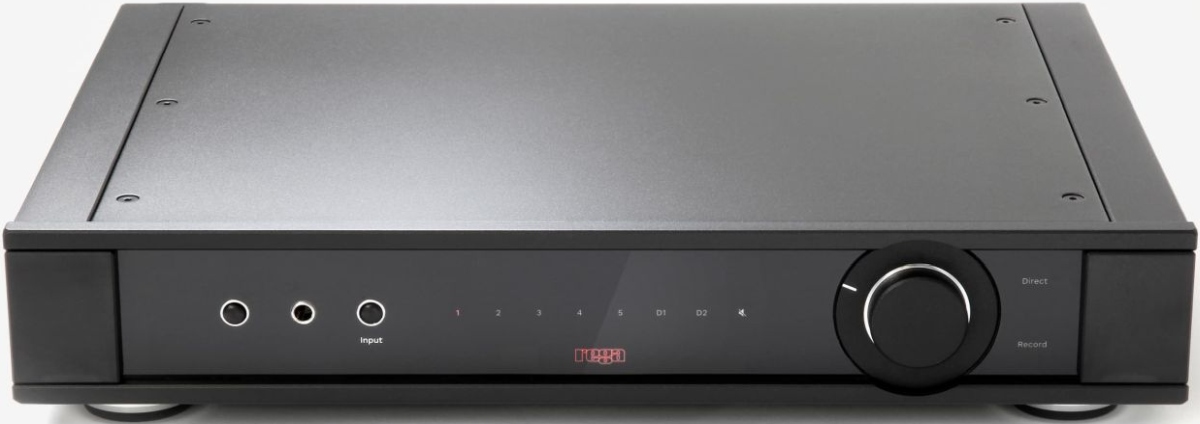

Rega Black Integrated Amplifier

Model #: Elicit MK5

$3,345.00

At a Glance

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. The new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω).

WarningProposition 65 Warning for California Residents
Rega Black Integrated Amplifier

Technical Specifications

Power Outputs at rated 230/115 V Supply voltage105 W per channel into 8 Ω; 127 W per channel into 6 Ω; 162 w per channel into 4 Ω
Supported Sampling Rates kHz32, 44.1, 48, 88.2, 96, 176.4, 192kHz
Supported Bit Depths16 to 24 bit

Misc. Specs

Depth (in.)13.39
Height (in.)3.23
Width (in.)17.01
Amplifier ClassClass AB
Manufacturer WarrantyLimited Lifetime
Watts per Channel (Watts)105
Color Finish NameBlack
Product Weight (lbs.)27.56
Width (cm)43.2
Height (cm)8.2
Depth (cm)34
Product Weight (kg)12.5

Rega Black Integrated Amplifier

Model #: Elicit MK5
Price Starting At
$3,345.00

At a Glance

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. The new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω).

Get to know this product.

Key Features

105 W per channel into 8 Ω

High quality moving magnet phono stage

2 x Digital inputs - 1 x optical and 1 x Co-Axial

High performance Rega DAC circuit for digital inputs

4 Line level inputs

Headphone output

Direct Input

Record input

New advanced pre-amplifier

Alps volume potentiometer

Thermal Cut-Out

Lifetime warranty against manufacture defects

The Heart Of Your Music

The new Elicit MK5 calls on decades of electronic design experience. It is a complex blend of three of our most successful products which promises to deliver big on sound, power, features and style. The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options. In addition to line, digital, and a high-quality moving magnet (MM) phono input, you will also find pre-out, Direct in, Record loop functionality and the high-performance headphone input.

The Elicit MK5 now shares other design features taken directly from the highly acclaimed Aethos amplifier. You will find the same discrete FET based pre-amplifier circuit, plus an Alps volume potentiometer has been introduced to further improve sonic and technical performance. As you would expect, special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors, and Sanken output transistors are used throughout the design.

The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. The new Elicit MK5 calls upon decades of award-winning experience in amplifier and digital circuit design which culminates in a perfectly engineered balance of reliability, connectivity and above all, accurate music reproduction.

Useful Documents
Specifications

Technical Specifications

Power Outputs at rated 230/115 V Supply voltage105 W per channel into 8 Ω; 127 W per channel into 6 Ω; 162 w per channel into 4 Ω
Supported Sampling Rates kHz32, 44.1, 48, 88.2, 96, 176.4, 192kHz
Supported Bit Depths16 to 24 bit

Misc. Specs

Depth (in.)13.39
Height (in.)3.23
Width (in.)17.01
Amplifier ClassClass AB
Manufacturer WarrantyLimited Lifetime
Watts per Channel (Watts)105
Color Finish NameBlack
Product Weight (lbs.)27.56
Width (cm)43.2
Height (cm)8.2
Depth (cm)34
Product Weight (kg)12.5
