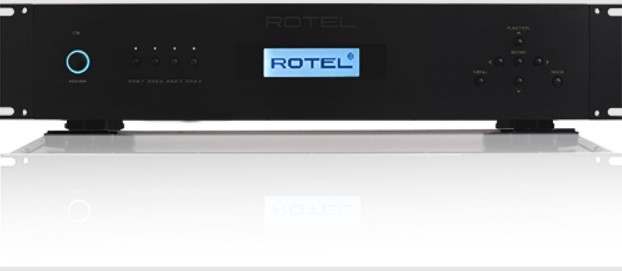

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology. The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.
Depth (in.) | 16.29 |
---|---|
Height (in.) | 3.88 |
Impedance | 31k Ohms |
Width (in.) | 17 |
Channels | 8 |
Frequency Response | 10 Hz - 100k Hz |
Wattage | 570 |
Amplifier Class | Class AB |
MPN | FR01276 |
Analog Audio(RCA) Input | 4 |
Watts per Channel (Watts) | 70 |
Color Finish Name | Black |
Product Weight (lbs.) | 36.81 |
Voltage | 120 |
Amplifier Channels | 8 |
Amp | 60 |
Class AB amplifier design
8 x 70 Watts of robust class AB power, 4 Ohms
Custom engineered toroidal transformer
12 volt trigger input
Rack ears included
For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8 is available in black only.
Depth (in.) | 16.29 |
Height (in.) | 3.88 |
Impedance | 31k Ohms |
Width (in.) | 17 |
Channels | 8 |
Frequency Response | 10 Hz - 100k Hz |
Wattage | 570 |
Amplifier Class | Class AB |
MPN | FR01276 |
Analog Audio(RCA) Input | 4 |
Watts per Channel (Watts) | 70 |
Color Finish Name | Black |
Product Weight (lbs.) | 36.81 |
Voltage | 120 |
Amplifier Channels | 8 |
Amp | 60 |
