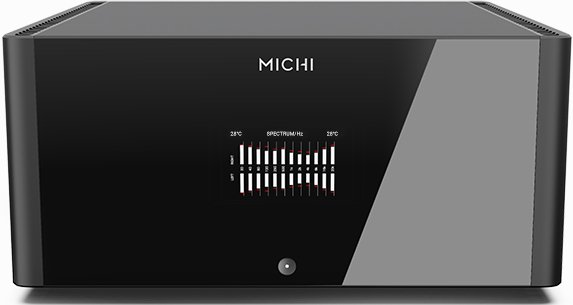

The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.
Depth (in.) | 18.25 |
---|---|
Height (in.) | 9.38 |
Width (in.) | 19 |
Frequency Response | 20Hz - 20kHz (+0dB, -0.15dB); 10Hz - 100kHz (+0dB, -0.4dB) |
Product Weight (lbs.) | 132.1 |
Color | Black |
Front Panel Height | 220mm (8.625") |
---|---|
Power Requirements | 120V, 60Hz |
Power Consumption | 1200W |
Standby Power Consumption | Normal: <0.5W; Network Wakeup: <2W |
Net Weight | 59.9kg (132.1lbs.) |
BTU Rating (4Ω, 1/8Th Power) | 3450 BTU/h |
Continuous Power Output | 500 W/CH (8Ω); 800 W/CH (4Ω) |
Total Harmonic Distortion (THD) | <0.008% |
Signal To Noise Ratio (IHF “A” Weighted) | 120dB |
Gain | Unbalance: 28dB; Balance: 24dB |
Intermodulation Distortion (60Hz:7Khz, 4:1) | <0.03% |
Damping Factor | 350 |
Speaker Impedance | 4Ω minimum |
Input Sensitivity | Unbalance: 2.6V; Balance: 4.2V |
Input Impedance | Unbalance: 12.5kΩ; Balance: 100kΩ |
Crosstalk / Separation | >65dB |
2 x 500 Watts of robust power
Class AB amplifier design
Patented British bulk storage capacitors
Massive power supply using Dual Toroidal Transformers
Balanced XLR inputs
The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohm and over 800 watts to 4 ohm loads. The dual monoblock architecture is equipped with twin, custom engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.
Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.
An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.
Front Panel Height | 220mm (8.625") |
Power Requirements | 120V, 60Hz |
Power Consumption | 1200W |
Standby Power Consumption | Normal: <0.5W; Network Wakeup: <2W |
Net Weight | 59.9kg (132.1lbs.) |
BTU Rating (4Ω, 1/8Th Power) | 3450 BTU/h |
Continuous Power Output | 500 W/CH (8Ω); 800 W/CH (4Ω) |
Total Harmonic Distortion (THD) | <0.008% |
Signal To Noise Ratio (IHF “A” Weighted) | 120dB |
Gain | Unbalance: 28dB; Balance: 24dB |
Intermodulation Distortion (60Hz:7Khz, 4:1) | <0.03% |
Damping Factor | 350 |
Speaker Impedance | 4Ω minimum |
Input Sensitivity | Unbalance: 2.6V; Balance: 4.2V |
Input Impedance | Unbalance: 12.5kΩ; Balance: 100kΩ |
Crosstalk / Separation | >65dB |
Depth (in.) | 18.25 |
Height (in.) | 9.38 |
Width (in.) | 19 |
Frequency Response | 20Hz - 20kHz (+0dB, -0.15dB); 10Hz - 100kHz (+0dB, -0.4dB) |
Product Weight (lbs.) | 132.1 |
Color | Black |
