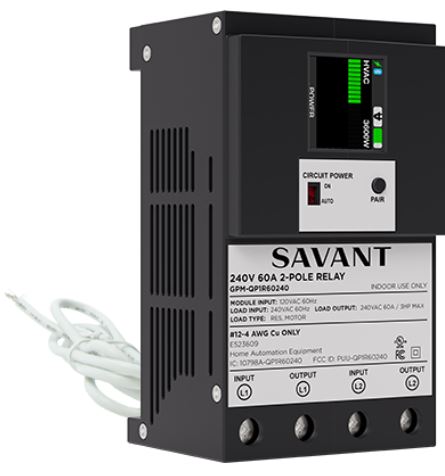

Product Overview
Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)
Deployment and configuration via Savant Power and Light App or through RacePoint Blueprint
Control Capability for loads up to 14400 VA (volt-ampere)
Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time
Dynamic remote management of loads
Communicates via Bluetooth Low Energy (BLE) technology
Color LCD display for easy identification and load status
Switch positioned on front of module allows power to output to be toggled on/off manually
Environmental
Temperature: 32° to 104° F (0° to 40° C)
Humidity: 5% to 85% Relative Humidity (non-condensing)
Location: Indoor Use Only
Power
Input Power (powers the module): 120V AC (+/- 10%) @ 60 Hz, 0.1A max
Input Power (from feeder breaker): 240V AC @ max load power
Load Power: 14400VA (240VAC 60A resistive load / 3HP max)
Features of Automatic Action: Type 1.B action
Standards
Wireless: Bluetooth 5 Low Energy (BLE); 2.4 GHz radio frequency
Regulatory
Safety and Emissions: FCC Part 15, UL, ICES 003
Contains FCC ID: PUU-QP1R60240
Contains IC: 10798A-QP1R60240
RoHS: Compliant
Supported Load Types
Standard Configuration: Relay On/Off type loads (home automation)
Electrical Characteristics
Tighten Torque: 5.0 Nm
Wire Type: Copper (Cu) only
Pollution Degree: 2
Purpose of Control: Operating Control, Smart Relay Control Module or equivalent
Software: Class A
Impulse Voltage: 2500V
Construction of Control
Open Type: Independently mounted for flush mounting
Minimum Supported Release
da Vinci 10.1.1
