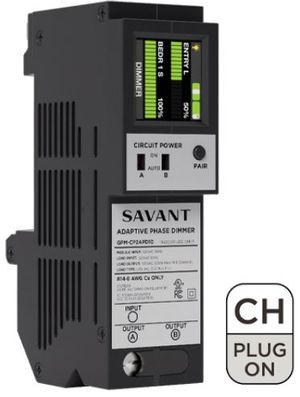

Savant Dual Adaptive Phase Dimmer Lighting Module

Model #: GPM-CP2APD10-21

At a Glance

The Savant Dual Adaptive Phase Dimmer Lighting Module is is compatible with a wide range of load types, including LED, incandescent, halogen, electronic-low-voltage (solid state) transformers, magnetic-low-voltage transformers, fluorescents, and dimmable compact fluorescents. This dimmer eliminates much of the guess-work associated with selecting the right dimmer technology for the load, and prevents the need to replace the dimmer if the load type changes in the future. Designed to be installed in CH style breaker panels, with plug-on neutral.

WarningProposition 65 Warning for California Residents
Savant Dual Adaptive Phase Dimmer Lighting Module

General Specs

Width (in.)1.46
Height (in.)3.39
Length (in.)4.96
Outdoor ApprovedNo
Manufacturer Warranty5 Year
Color Finish NameBlack
Ul Cul ListedNo
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
App CapableNo

Savant Dual Adaptive Phase Dimmer Lighting Module

Model #: GPM-CP2APD10-21
1197755
Model #: GPM-CP2APD10-21
Savant
$99,999.00

Call for Best Price

At a Glance

The Savant Dual Adaptive Phase Dimmer Lighting Module is is compatible with a wide range of load types, including LED, incandescent, halogen, electronic-low-voltage (solid state) transformers, magnetic-low-voltage transformers, fluorescents, and dimmable compact fluorescents. This dimmer eliminates much of the guess-work associated with selecting the right dimmer technology for the load, and prevents the need to replace the dimmer if the load type changes in the future. Designed to be installed in CH style breaker panels, with plug-on neutral.

Get to know this product.

Control capability for dimming two loads up to 500 VA (volt-ampere)

Compatible with a variety of load types

Automatically detects load type and determines the appropriate dimming type

Built-in Energy monitoring; +/- 3% accuracy / 1 sec sample time

Color LCD display for easy load identification, load status and energy usage

Reset button / Manual load test switch

Communicates over Bluetooth Low Energy

Fits into Eaton CH™ compatible breaker panels

Simple to configure and deploy using RacePoint Blueprint Lighting Manager or the Savant Power & Light app

Onboarding from an iOS device

Environmental

Temperature: 32° to 104° F (0° to 40° C)

Humidity: 5% to 85% Relative Humidity (non-condensing)

Power

Input (powers module) - 120V AC (+/- 10%) @ 60 Hz, 0.1A max

Input (from external source) - 120V AC @ max load power

Load Power (Max) - 500VA 4.1A @120V AC per channel

Features of Automatic Action - Type 1 action

Standards

Wireless - Bluetooth Low Energy (BLE), 2.4 GHz radio frequency

Regulatory

Safety and Emissions - FCC Part 15, UL, ICES 003

Contains FCC ID: PUU-QP2APD10

Contains IC: 10798A-QP2APD10

RoHS: Compliant

Specifications

General Specs

Width (in.)1.46
Height (in.)3.39
Length (in.)4.96
Outdoor ApprovedNo
Manufacturer Warranty5 Year
Color Finish NameBlack
Ul Cul ListedNo
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
App CapableNo
