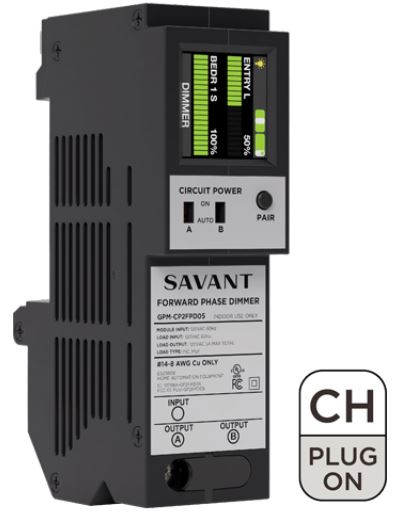

Savant Dual Forward Phase Dimmer Module

Product Overview

Control capability for dimming two loads up to 300 VA (volt-ampere)

Compatible with forward phase loads

Built-in Energy monitoring; +/- 3% accuracy / 1sec sample time

Color LCD display for easy load identification, load status and energy usage

Reset button / Manual load test switch

Communicates over Bluetooth Low Energy

Fits into 3/4 inch QO™ compatible breaker panels

Simple to configure and deploy using RacePoint Blueprint Lighting Manager or the Savant Power & Light app

On-boarding from an iOS device

Environmental

Temperature - 32° to 104° F (0° to 40° C)

Humidity - 5% to 85% Relative Humidity (non-condensing)

Power

Input (powers module) - 120V AC (+/- 10%) @ 60 Hz, 0.1A max

Input (from external source) - 120V AC @ max load power

Load Power (Max) - 300VA 2.5A @120V AC max per channel (600VA 5A @120V AC max when only one channel used)

Features of Automatic Action - Type 1 action

Regulatory

Safety and Emissions - FCC Part 15, UL, ICES 003

Contains FCC ID: PUU-QP2APD10

Contains IC: 10798A-QP2APD10

RoHS: Compliant

Standards

Wireless - Bluetooth Low Energy (BLE), 2.4 GHz radio frequency
