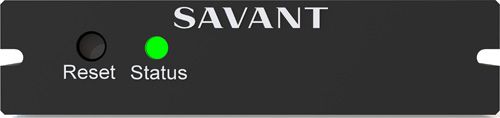

Savant® SmartControl RS232 Wi-Fi Smart Controller

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

The SmartControl 2 features 2 Serial control ports.  In combination with other Savant SmartControl products, it provides the flexibility and scalability needed to meet the needs of any job.

• 2 RS232 control ports
• Wi-Fi (802.11 b/g/n 2.4 GHz)
• Ultra-compact, surface mount design

Included Items:

• (1) SmartControl 2 Serial Controller (SSC-W02R-00)
• (1) Mounting Plate
• (1) 6-pin Screw Down Plug-in Connector
• (1) 5V DC 1.2A Power Supply
• (1) Cable Tie

Environmental

• Temperature 32° to 104° F (0° to 40° C)
• Humidity 10% to 80% RH (non-condensing)

Power

• Input Power 5V DC 1.2A
• Max Power 6 watts

Standards

• Wireless Wi-Fi (802.11 b/g/n 2.4 GHz)
• Bluetooth Low Energy

Compliance

• Safety and Emissions FCC Part 15 | CE Mark | C-Tick
• RoHS Compliant

Minimum Supported Release:

• Savant OS da Vinci 8.0

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.

Specifications
